HDU 3594 Cactus (仙人掌图、Tarjan)

Description

  1. It is a Strongly Connected graph.
  2. Each edge of the graph belongs to a circle and only belongs to one circle.

We call this graph as CACTUS.

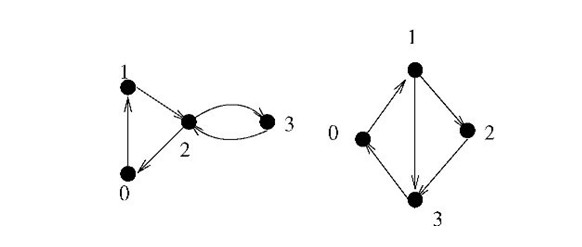

There is an example as the figure above. The left one is a cactus, but the right one isn’t. Because the edge (0, 1) in the right graph belongs to two circles as (0, 1, 3) and (0, 1, 2, 3).



Input

The input consists of several test cases. The first line contains an integer T (1<=T<=10), representing the number of test cases.

For each case, the first line contains a integer n (1<=n<=20000), representing the number of points.

The following lines, each line has two numbers a and b, representing a single-way edge (a->b). Each case ends with (0 0).

Notice: The total number of edges does not exceed 50000.



Output

For each case, output a line contains “YES” or “NO”, representing whether this graph is a cactus or not.



Sample Input

2
4
0 1
1 2
2 0
2 3
3 2
0 0
4
0 1
1 2
2 3
3 0
1 3
0 0



Sample Output

YES
NO



题意

给出一张有向图,判断其是否是仙人掌图。



思路

在解决这道题之前我们首先要知道什么是仙人掌图。

直观的说,仙人掌图就是一个一个的圈直接“粘”在一起的图,圈之间没有公共边。

我们主要根据其以下三点性质来做出判断:

  1. 仙人掌图的 DFS 树没有横向边
  2. Low(u)<=DFN(v) (u 是 v 的儿子)
  3. 设某个点 v 有 a(v) 个儿子的 Low 值小于 DFN(v) ,同时 v 自己有 b(v) 条逆向边,那么 a(v)+b(v)<2

LOWDFN 之前我们所学习的 Tarjan 算法中已经遇到了,直接拿来改改就可以了。



AC 代码

#include<cstdio>
#include<cstdlib>
#include<cstring>
#include<stdlib.h>
#include<iostream>
#include<map>
using namespace std;

const int maxn = 51000;
int DFN[maxn];          //记录搜索到该点的时间
int LOW[maxn];          //记录当前搜索的强连通子图搜索树的根节点
int Stack[maxn],Stop;   //工作栈
int Dindex;             //一个计数器,记录访问节点的次序
bool instack[maxn];     //记录当前点是否在栈中
bool ans;

struct node
{
    int to;
    int next;
} edge[maxn];
int head[maxn],tot,n;

void init()
{
    memset(head,-1,sizeof(head));
    memset(DFN,0,sizeof(DFN));
    memset(instack,false,sizeof(instack));
    tot=Dindex=Stop=0;
    ans=true;
}

void addedge(int u,int v)
{
    edge[tot].to=v;
    edge[tot].next=head[u];
    head[u]=tot++;
}

void tarjan(int i)
{
    DFN[i]=LOW[i]=++Dindex;
    instack[i]=true;
    Stack[++Stop]=i;
    int cnt=0;
    for(int k=head[i]; k!=-1; k=edge[k].next)
    {
        int j=edge[k].to;
        if (!DFN[j])    //如果邻接的该点没有被标记
        {
            tarjan(j);
            if (LOW[j]<LOW[i])  //如果邻接点搜索结束后LOW更小,说明在j中找到一个环,然后使环中所有LOW统一
                LOW[i]=LOW[j];
        }
        else if (instack[j] && DFN[j]<LOW[i])   //找到一个环
            LOW[i]=DFN[j];
        else if(!instack[j])    //第一条性质
        {
            ans=false;
            return;
        }
        if(LOW[j]>DFN[i])       //仙人掌第二条性质
        {
            ans=false;
            return;
        }
        if(DFN[j]<DFN[i]||(DFN[j]>DFN[i]&&LOW[j]<LOW[i]))   //仙人掌第三条性质
            cnt++;
    }
    if(cnt>1)
    {
        ans=false;
        return;
    }
    if (DFN[i]==LOW[i]) //相等说明i为强连通子图搜索树的根节点
    {
        int top;
        do  //退栈
        {
            top=Stack[Stop--];
            instack[top]=false;
        }
        while (top!=i);
    }
}

int main()
{
    ios::sync_with_stdio(false);
    int T;
    cin>>T;
    while(T--)
    {
        init();
        cin>>n;
        while(true)
        {
            int a,b;
            cin>>a>>b;
            if(a==0&&b==0)break;
            addedge(a,b);
        }
        tarjan(0);
        cout<<(ans?"YES":"NO")<<endl;
    }
    return 0;
}
